Carli Front Hd Leaf Spring Kit – 2005-07 Ford F250/F350 – +1000 Lbs – 1in Lift

Description

Carli Suspension

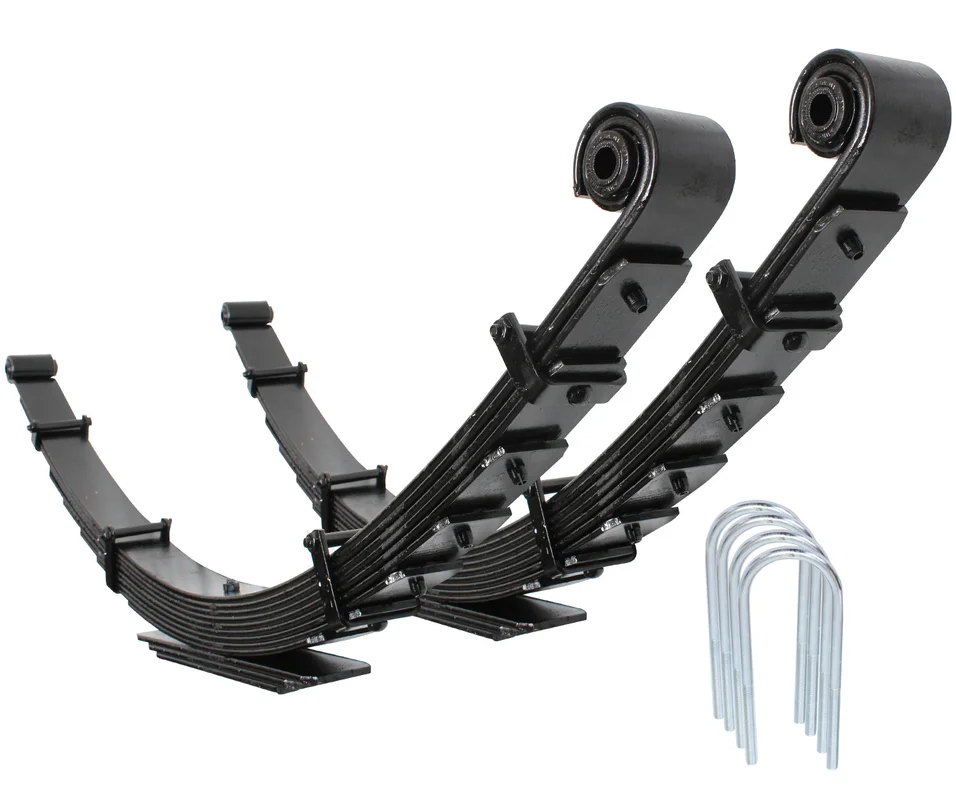

Carli HD Leaf Spring Kit – 2005–2007 Ford F250/F350 4×4 – +1000 lbs – 1″ Lift

The Carli Heavy Duty Full Progressive Leaf Spring Kit is designed for trucks running a constant 1,000 lb bed load, making it ideal for work trucks with toolboxes, welders, or overland setups. Built in collaboration with Deaver Spring, this full replacement system replaces the harsh factory leaf pack with a progressive multi-leaf design that significantly improves ride quality, handling, and suspension travel. These springs are not intended for unloaded use and require the constant weight to function properly and maintain intended ride height.

Engineered to pair with Carli 2.5″ suspension systems, this HD spring pack delivers smoother suspension cycling across highway driving, off-road terrain, and towing applications. The advanced spring design supports increased articulation while maintaining stability under load, making it a reliable upgrade for demanding use cases.

Key Features:

• Designed for constant 1,000 lb bed load applications

• Ideal for work trucks, overland builds, and utility setups

• Full progressive, block-eliminating leaf spring pack

• 9-leaf main pack with 3-leaf progressive overload

• Provides approximately 1″ rear lift with slight rear-high stance

• Supports up to 15″ of wheel travel

• Dramatically improves ride quality over factory leaf springs

• Relocated center pin for increased tire clearance (up to 38″, 37″ recommended)

• Includes new U-bolts and rear bump stop drop spacers

• Minimizes friction and improves suspension cycling

• Supports up to 37″ tire fitment

Notes:

• Not designed for unloaded driving conditions

• Requires approximately 1,000 lbs constant load for proper performance

• Will ride stiff and sit higher than intended if run unloaded

• Carli 2.5″ remote reservoir shocks with custom tuning recommended

• Compatible with 3.5″ axle tube diameter

• Requires front hanger relocation for installation (conversion hardware included)

• 2005–2007 applications utilize 2008+ leaf spring design

Vehicle Fitment:

• 2005–2007 Ford F-250 Super Duty

• 2005–2007 Ford F-350 Super Duty

SKU: CS-FFSP-LVL-05-HD
