Description
Upgrade your RAM 1500 with LOGIQ’s Air Spring Kit—a coil replacement solution that swaps factory coils (or factory air) for primary air at the rear axle. Enjoy a smoother ride unloaded, superior load support when hauling, and adjustable height for easier loading or trailer hookup. Fits factory-height trucks and up to 3” lifts out of the box. With a 6,000 lb capacity at 150 PSI, it’s smarter air suspension for serious work.
WARNING – Never exceed manufacturer’s Maximum Payload or GVWR
Ride Height = factory to +3″. For lift amount greater than +3″ to +6″ add spacer kit 89-11090-3.
Not Compatible with TRX or RHO Trim Packages

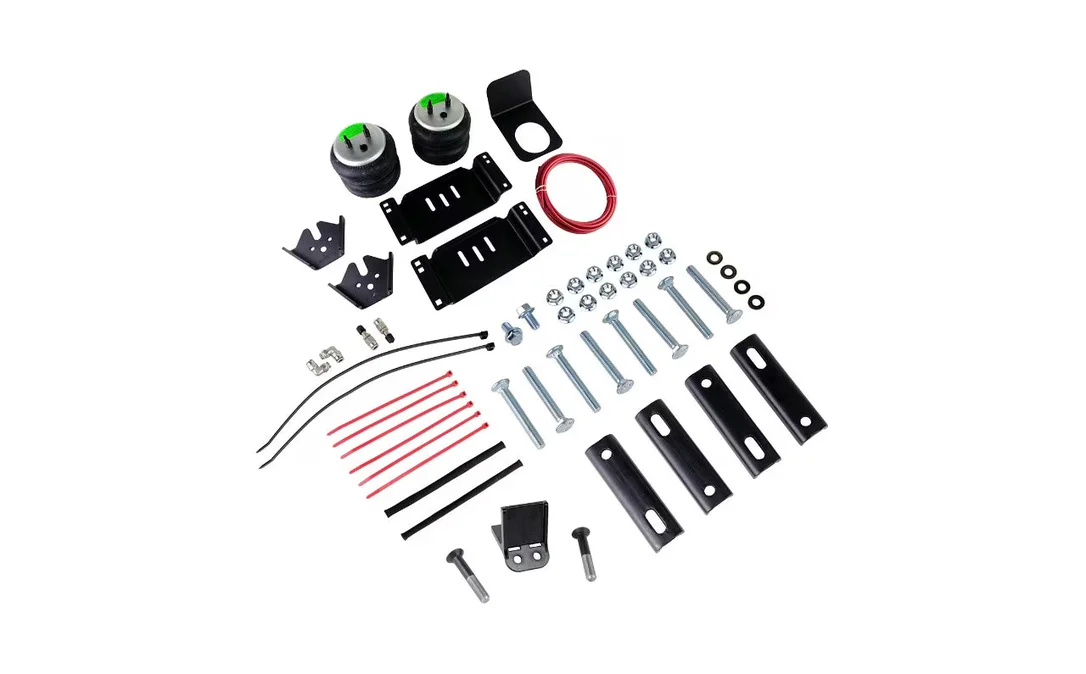

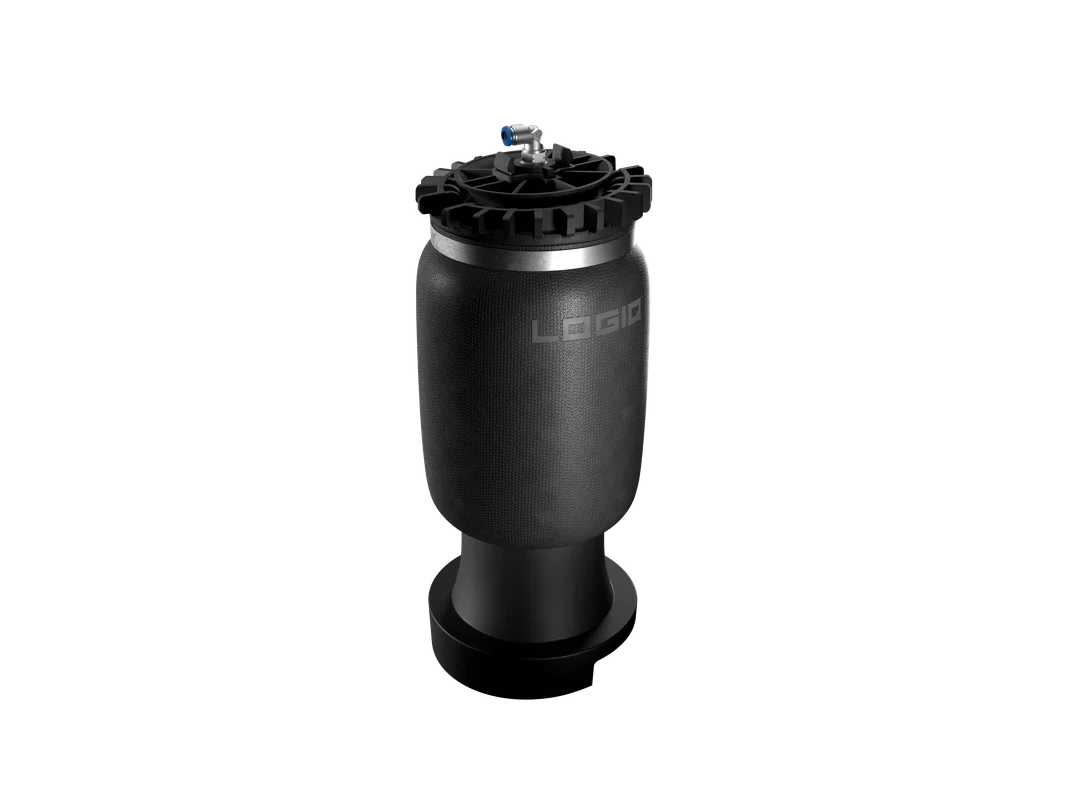

(1) Driver Side Air Spring Assembly
(1) Passenger Side Air Spring Assembly
(1) Hardware Kit
(1) Manual Inflation Kit
Air Spring Location: Axle Mounted Outboard Frame Rails
Air Spring Quantity: 2
Lifting Force: 6,000 lbs @ 150 psi
Payload Capacity: 3,800 lbs @ 150 psi
Maximum Pressure: 150 psi
Minimum Pressure: 20 psi
